Cubicle Systems

Toilet Cubicles & Washroom Cubicles

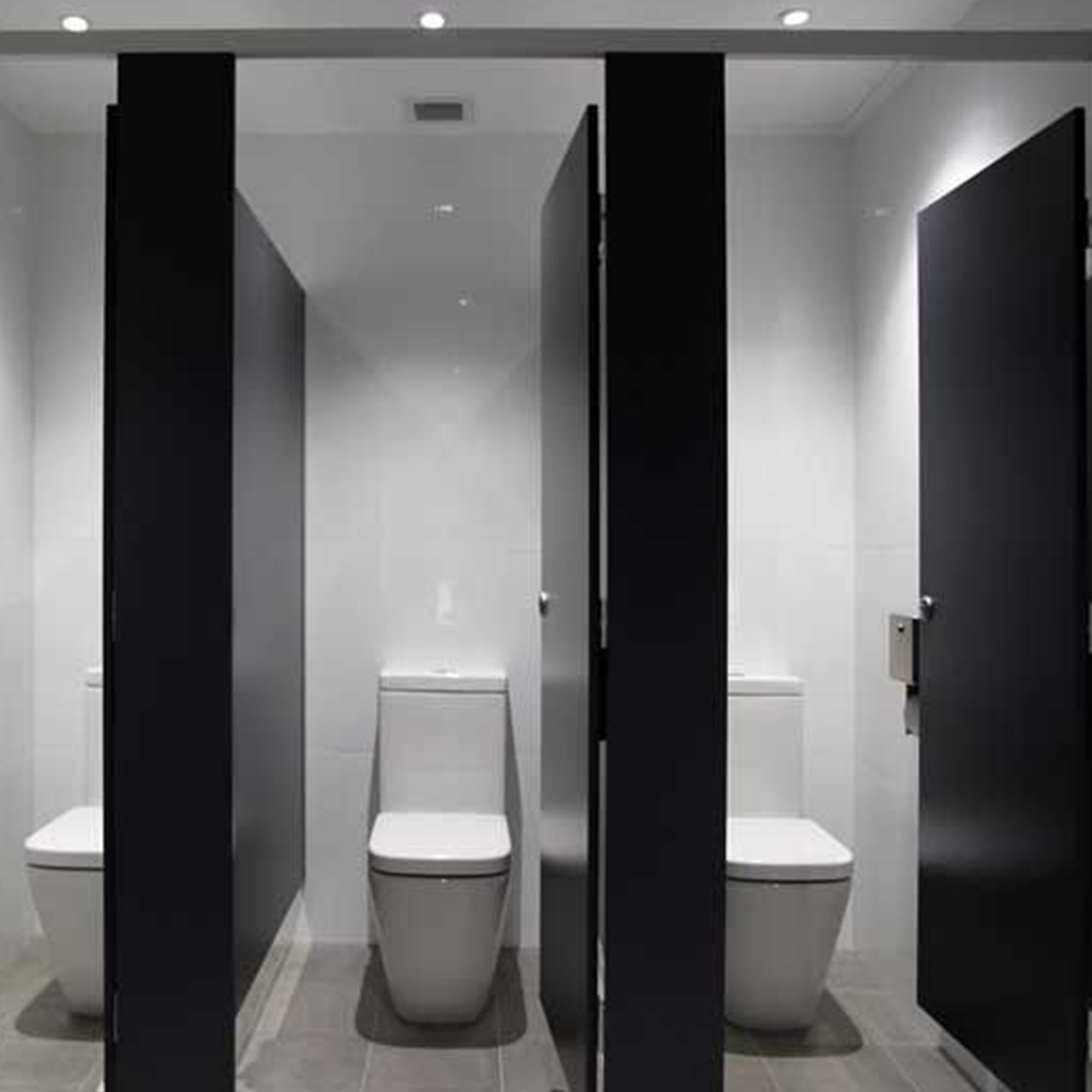

Toilet cubicles and washroom cubicles (WC cubicles), with urinal, shower and changing-room partitions in 12 mm G-COM compact laminate for schools, malls, hospitals, hotels and sports facilities. CNC-cut to size, with stainless steel hardware and installation. A CDF board option is available for suitable dry rooms.

  • G-COM for wet areas
  • Stainless steel hardware
  • Made to size and installed
1800 mm Large-Ball Impact (No Crack)
12 mm Standard Panel Thickness
B-s1,d0 Fire Class (12–25 mm)
Ø Surface Porosity
Overview

A compact answer to every wet-area challenge

Toilet cubicles and washroom cubicles, also called WC cubicles and known as toilet partitions or restroom partitions in the US and the Gulf, are made here from solid, homogeneous compact laminate panels (often specified as phenolic panels) produced by impregnating cellulose layers with phenolic resin and pressing them under high pressure and temperature. The non-porous surface resists water, moisture and steam, as well as swelling, warping and mold, and withstands heavy cleaning. Its solid, single-piece structure needs no separate edge banding. Our standard panel for cubicles, urinal partitions and changing rooms is 12 mm G-COM compact laminate; for dry or splash-only rooms we also offer a 12 mm CDF board option where it suits the project.

Water & Moisture Resistant

Keeps its form in constantly wet environments; resists swelling, warping and rot.

Hygienic & Non-porous

The non-porous surface makes it hard for bacteria and mold to settle and is easy to disinfect.

Vandal & Impact Resistant

Resists scratching, impact and wear under heavy public use.

Systems

Cubicle & Partition Systems

The same water-resistant compact panel turns into different systems for every wet-area need. Where it suits, there is a CDF option too.

Toilet Cubicle Partitions
Also in CDF – Toilet Cubicle Partitions: Explore the CDF option

Toilet Cubicle Partitions

Toilet cubicle partitions, panels and cubicle doors made to project size from water-resistant 12 mm solid compact panels, with a floor-to-ceiling privacy option.

  • Full-height privacy
  • Stainless steel hardware
  • Adjustable legs

CDF option: in dry or splash-only, well-ventilated office, school, mall and factory washrooms.

Shower Partition Systems

Shower Partition Systems

Moisture-resistant, mold-resistant shower partitions for gyms, dormitories and pools.

  • Mold-resistant surface
  • Water-resistant edge
  • Hygienic surface
Compact Seating Benches

Compact Seating Benches

Water-resistant, durable compact seating benches for changing and dressing areas.

  • Water-resistant seat
  • Sturdy legs
  • Easy to clean
Lockers

HPL Lockers (Compact Laminate Lockers) for Changing Rooms and Staff

Whether you call them HPL lockers, changing-room lockers, staff lockers or gym lockers, they have to cope with moisture and frequent cleaning in gyms, pools, schools and factories. We build them from the same 12 mm compact laminate we use for cubicles; the panel is moisture-resistant and resists swelling and warping.

Doors are lockable and ventilated, and size and color are set per project. Because we make seating benches and changing cubicles from the same panel, the whole changing room can be finished in one material.

HPL lockers in compact laminate for a changing room
  • 12 mm compact laminate panels
  • Lockable, ventilated doors
  • For gym, pool, school and factory changing rooms
  • Made to project size and color

A 12 mm CDF option is available for dry changing rooms; in wet areas next to pools and showers we use compact laminate.

Choosing a Panel

Compact laminate or CDF?

Our standard panel for cubicles and partitions is Gentaş G-COM compact laminate; it is used in wet areas with demanding hygiene and in dry rooms alike. In dry or splash-only, well-ventilated interiors we also offer 12 mm CDF board as an option where it suits the project. The conditions of the room decide which is right. For both materials we offer the board, CNC cutting, hardware and installation together.

Our standard panel

G-COM Compact Laminate

Gentaş's phenolic compact laminate and the standard panel of the cubicle systems on this page. Made for rooms that are permanently wet, heavily used and frequently disinfected.

Standard
EN 438-4 (CGS)
Density
≥ 1.35 g/cm³
Fire class
B-s1,d0 (12–25 mm · EN 13501-1)
Weight at 12 mm
≈16.8 kg/m²

Recommended for

  • Shower cubicles, in-shower partitions and WC–shower separation
  • Wet changing areas in pools, spas and sports facilities
  • Floors that are hosed down or washed with plenty of water
  • Constant high humidity and poor ventilation
  • Specifications requiring fire class B-s1,d0 or "EN 438 compact laminate"
  • Public areas with heavy vandalism risk
An option for dry rooms

CDF Board

A 12 mm compact density fiberboard with a homogeneous black fiber core and melamine on both faces. At the same thickness it is roughly 25–30% lighter than compact laminate; it is moisture-resistant, but it is not waterproof. Available as sheets or as turnkey cubicles with cutting, hardware and installation.

Thickness
12 mm
Density
≥ 1.00 g/cm³
Sheet size
1830×2440 · 2100×2440 mm
Weight at 12 mm
≈12 kg/m²

Suitable for

  • Dry or splash-only, well-ventilated office, school, mall, factory and warehouse washrooms
  • Changing lockers and dry changing cubicles
  • Urinal partitions raised clear of the floor and away from direct water
  • Projects where budget and low weight are priorities
  • Specifications that set no fire class, or where the required class can be documented at the quotation stage

Installation requirement: panels stand on legs clear of the floor, edges are sealed and the room is ventilated.

Which panel for which room?

Room / condition G-COM CDF
Dry or splash-only, well-ventilated office, school, mall and factory washrooms Suitable Suitable
Changing lockers and dry changing cubicles Suitable Suitable
Urinal partitions raised clear of the floor and away from direct water Suitable Conditional
Showers, pools, spas and wet changing areas Suitable Not recommended
Floors that are hosed down or washed with plenty of water Suitable Not recommended
Specifications requiring B-s1,d0 or "EN 438 compact laminate" Suitable Not recommended

Indicative guidance: G-COM values come from the Gentaş datasheet, CDF values from the technical data of our 12 mm CDF board, and weights from a density × thickness calculation. We confirm the final choice with you at the quotation stage, based on room conditions and the specification.

Colors

Color options by material

The two materials have different color ranges: G-COM compact laminate offers the six solid colors we recommend for cubicles plus the full Gentaş decor collection, while 12 mm CDF board comes in four solid colors.

Compact laminate

G-COM colors

6 solid colors + decor collection

The code and name under each color are its Gentaş swatch-book equivalent. Woodgrain, stone and other Gentaş decors can also be used.

All Gentaş colors and decors
  • Ultra White · 3103
  • Cream · 3106 Beige
  • Office Gray · 3153
  • Anthracite · 3155 Anthracite Gray
  • Gray · 3156 Dark Gray
  • Black · 3190
CDF board · 12 mm

CDF colors

4 solid colors

Melamine-faced on both sides; the black core shows on machined edges.

Explore CDF Board
  • White
  • Cream
  • Office Gray
  • Anthracite

Can't find the color you need? Contact us for other colors and samples.

Ask about other colors

On-screen colors are indicative; ask for a sample to confirm the exact shade.

Material Profile

G-COM Compact Laminate Panel

No. 01 Phenolic Compact Laminate
GC
G-COM
Standard
EN 438-4 (CGS)
Density
≥ 1.35 g/cm³
Fire
B-s1,d0 (12–25 mm · EN 13501-1)

G-COM is a phenolic compact laminate suited to wet areas. Its solid single-piece structure means the edges need no banding and resist water, and partitions stand on their own without a supporting frame.

Wear & Moisture Barrier

Water-resistant protective top layer

Decorative Layer

Resin-impregnated decor paper (both faces)

Solid Phenolic Core

Kraft layers pressed under high pressure

Integrated Edge

Water-resistant compact edge that needs no banding

Performance

Why a Compact Cubicle?

It answers wet-area challenges — water, moisture, impact, vandalism, hygiene and fire — with a single panel system.

Water & Moisture Resistant

Stands up to constant wetness, steam and washing.

  • Resists swelling / warping
  • Mold-resistant
  • Water-resistant edge

Hygiene & Easy Cleaning

The non-porous surface makes it hard for microorganisms to settle.

  • Hygienic surface
  • Easy to disinfect
  • Stain-resistant

Vandal & Impact Resistance

Stands up to heavy public use and misuse.

  • Scratch resistant
  • Impact-absorbing core
  • Easy graffiti removal

Stainless Hardware

Hinges, locks and legs are made of stainless steel or moisture-resistant materials.

  • Self-closing hinge
  • Indicator lock
  • Adjustable stainless leg

Fire Performance

Standard G-COM is rated B-s1,d0 at 12–25 mm; project-specific solutions are available for higher requirements.

  • B-s1,d0 (12–25 mm · EN 13501-1)
  • Low smoke class (s1)
  • Suited to public areas

Made to Project

Produced to size, color and hardware for each room.

  • CNC cutting
  • Wide Gentaş decor range
  • Fast installation
Comparison

Why Compact Laminate?

Place the materials used for wet-area partitions side by side and compact laminate stands out clearly on water, hygiene and durability.

Gülmar Compact Laminate Melamine / Chipboard Lacquered MDF Metal / Sheet
Water & Moisture Resistance Yes No No Partial
Resists Swelling / Warping Yes No No Yes
Non-porous / Hygienic Yes Partial Partial Partial
Vandal & Impact Resistance Yes No No Partial
Rust Resistance Yes Yes Yes No
No Supporting Frame Needed Yes No No No
Long Service in Wet Areas Yes No Partial Partial

The table is indicative; final performance varies with application and maintenance.

Hygiene

A non-porous surface makes it hard for water and bacteria to settle

Unlike traditional porous surfaces, compact laminate contains no voids for liquids and microorganisms to settle into. Its single-piece, water-resistant edge reduces the risk of a moisture bridge at the base of the cubicle, and the surface resists cleaning products containing disinfectants, chlorine and hydrogen peroxide (G-COM datasheet).

  • Non-porous, easy-to-clean and stain-resistant surface
  • Water-resistant compact edge — resists swelling and rot
  • Non-porous structure — makes it hard for microbes to settle
  • Surface resistant to disinfectants, chlorine and hydrogen peroxide
NON-POROUS · EASY TO CLEAN
Workflow

From Project to Installation

A transparent, controlled process from your room dimensions to an installation-ready cubicle system.

  1. 01

    Survey & Measure

    Room layout, cubicle count, panel (G-COM or CDF) and hardware requirements are defined.

  2. 02

    Design & Approval

    The partition plan, color and hardware selection are prepared and approved in CAD.

  3. 03

    CNC Cutting

    Panels are cut to project size; hardware seats are machined to the millimeter.

  4. 04

    Labeling & Dispatch

    Cubicles are labeled per room and securely packed.

  5. 05

    Install & Deliver

    Partitions are installed on site with a fast, clean fit-out.

Datasheet

Technical Specifications

Our G-COM compact cubicle panels are 12 mm thick and prepared to project specification in a choice of colors and hardware. CDF board values are on the CDF Board page.

SPEC SHEET · G-COM
Product / Standard
G-COM · EN 438-4 (CGS)
Density
≥ 1.35 g/cm³ (ISO 1183)
Flexural Strength
114 MPa (EN ISO 178)
Impact (Large Ball)
1800 mm — no crack
Fire Class
B-s1,d0 (12–25 mm · EN 13501-1)
Formaldehyde
E1 (EN 717-1)
Cleaning Chemicals
Resists disinfectants, chlorine and H₂O₂
Thickness / Hardware
12 mm · stainless steel hardware
Where It Is Used

Toilet cubicles for hospitals, schools, hotels and malls

Washrooms do not all work under the same conditions. We choose the panel and hardware by traffic, cleaning routine and specification.

Healthcare

Hospital WC Cubicles

Surfaces in hospitals and clinics are disinfected often. G-COM compact laminate offers a non-porous surface that withstands cleaning products containing disinfectant, chlorine and hydrogen peroxide.

Education

School WC Cubicles

In schools and campuses the priority is resistance to impact and misuse. Compact panels resist scratches and impact, and writing and graffiti clean off easily. In dry, well-ventilated washrooms 12 mm CDF can also be used.

Hospitality

Hotel WC Cubicles

In hotel public washrooms and spa areas, appearance matters too. Besides solid colors, we prepare cubicles in woodgrain and stone-look Gentaş decors to match the interior design.

Retail

Mall WC Cubicles

Mall washrooms are in use all day and washed down often. The water-resistant compact edge, stainless steel hardware and self-closing hinges are chosen for that traffic.

Office

Office Building WC Cubicles

On office floors we build cubicles in G-COM compact laminate; color and decor follow the floor design. In dry, well-ventilated washrooms, 12 mm CDF board can also be an option.

Sports

Gyms & Pools

In showers, pools and wet changing areas we use G-COM, which withstands constant moisture: shower partitions, lockers and benches are made from the same panel.

Public

Public Building WC Cubicles

Public projects usually specify a standard and a fire class. G-COM complies with EN 438-4 and is rated B-s1,d0 in 12–25 mm thickness.

Industry

Factories & Warehouses

In factories and warehouses we build toilet cubicles and staff changing rooms in G-COM compact laminate, and recommend it in particular where floors are hosed down. In dry rooms, CDF can also be an option when budget is the priority.

FAQ

Your Questions

Compact laminate has a solid, homogeneous, non-porous structure; it resists water and moisture as well as swelling and warping. Its single-piece compact edge needs no separate banding, which reduces the risk of a moisture bridge at the base of the cubicle. This lets it keep its form for many years in constantly wet environments.

Yes. Toilet cubicles, washroom cubicles and WC cubicles are the usual names in the UK and the Gulf; toilet partitions and restroom partitions are the US names for the same system. "Phenolic partitions" describes the panel: compact laminate is pressed with phenolic resin. We build ours from 12 mm G-COM compact laminate with stainless steel hardware, cut to size for your layout.

Both look alike in a cubicle; how wet the room is and the specification decide. We recommend G-COM compact laminate for showers, pools, spas and wet changing areas, floors that are hosed down, projects requiring fire class B-s1,d0 or "EN 438 compact laminate", and public areas with heavy vandalism risk. In dry or splash-only, well-ventilated office, school, mall and factory washrooms, for lockers and for urinal partitions raised clear of the floor and away from direct water, 12 mm CDF board is a lighter and usually more economical alternative. CDF is not waterproof: panels should stand on legs clear of the floor and the room should be well ventilated.

Yes. We offer 12 mm CDF board either as sheets or CNC-cut to your project and installed with its hardware as turnkey cubicles. See the CDF Board page for details.

We use 12 mm G-COM compact laminate as standard for WC cubicle partitions, cubicle doors, urinal partitions and changing rooms. The CDF option is also 12 mm.

We choose materials suited to wet rooms: hinges, locks, connectors and legs are made of stainless steel or moisture-resistant nylon/glass fiber and resist corrosion. Hinges are self-closing and locks can include an occupancy indicator.

For G-COM we recommend six solid colors for cubicles (Gentaş code and swatch-book name in brackets): Ultra White (3103), Cream (3106 Beige), Office Gray (3153), Anthracite (3155 Anthracite Gray), Gray (3156 Dark Gray) and Black (3190); woodgrain, stone and other Gentaş decors can also be used. 12 mm CDF board comes in four solid colors: white, cream, office gray and anthracite. Contact us for other colors.

The price depends on the number and size of cubicles, the panel (G-COM compact laminate or 12 mm CDF), color or decor, the hardware set and whether installation is included. Share your room dimensions and cubicle count and we will prepare a quote for your project.

No. We do not sell portable or mobile toilet cabins. What we build are fixed cubicle and partition systems installed in washrooms inside buildings: compact laminate panels, cubicle doors, hardware and installation.

Yes. For G-COM and CDF cubicles, panels are prepared cut to project size, with hardware seats machined and labeled per room, and we install them on site on request.

Yes, on request. We are based in İzmir, Türkiye (Turkey). Send us your washroom layout or cubicle count and the destination and we will quote including packing. For orders abroad the cubicles are supplied as a set cut to size, with hardware seats machined, labeled per room and with stainless steel hardware, ready for your own installer.How ordering from abroad works

Let's plan your washroom project together

Share your room dimensions or layout drawing, cubicle count, conditions of use and hardware preferences; we will recommend the right panel (G-COM or CDF), color and system and prepare a quote. Ordering from abroad? Add your destination and we will quote including packing.
